PROTAPE 301-AS

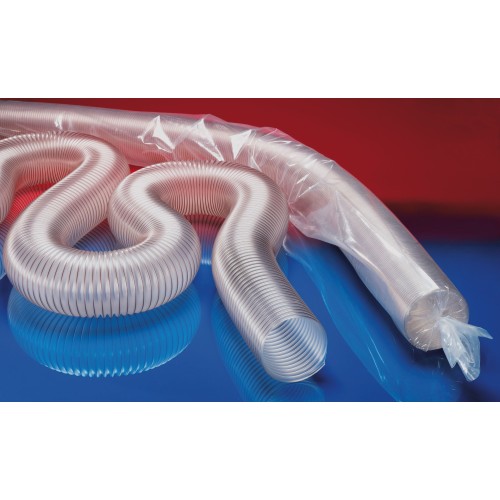

PRO-TAPE® 301-AS

: Anti-Static / Pre-PUR^®Polyurethane Hose / ATEX Compliant

Application:

Flexible hose/ducting for gases, abrasive dust, powders, and fibers. Suitable for a wide range of industrial, commercial, and mobile applications, including:

Light Material Handling
Powders: Vacuum & Transfer
Wood Working / CNC
Dust & Fume Extraction: Extraction units, dust collection systems, filter systems, oil mist extraction, extraction arm
Chemical Industry: Chemical vapors, vapor return hoses at loading arms, paint fumes, spray mist extraction
Explosion-Hazard Environments
Agriculture & Animal Care: Barns, animal stalls, and sheds for ventilation
Mobile & Marine Applications: Buses, utility vehicles, caravans, trailers, mobile homes/RVs, boats, ships, yachts—for ventilation and heating
Clean Rooms & High-Tech Production: Semiconductor production machinery, clean room ventilation
Special Components: Bellows, compensators

Construction:

PROTAPE® Tape Hose
Copper Coated Spring steel wire integrated into the hose wall for excellent stability.
Wall made of permanently antistatic, premium ester-polyurethane (Pre-PUR®)
Wall thickness: approximately 0.015 in (0.38 mm) for light weight, flexibility, and durability

Temperature Range:

-40°F to 195°F (-40°C to 90°C), with short-term exposure up to 255°F (124°C)

Properties:

Super-light weight
Highly flexible + compressible 3:1
Abrasion-resistant
Microbe resistant
Good resistance to oil, gasoline, and chemicals
Very good low temperature flexibility
Flame-retardant according to: UL94-HB
Flame-retardant according to: DIN 4102-B1
Permanently antistatic wall according to ISO 8031 electrical and surface resistance < 10⁹ Ω (according to NFPA 652 10⁸-10⁹ Ω)
In accordance with ATEX 2014/34/EU (1999/92/EC) and German TRGS 727: aspiration of combustible dust (zone 22 inside), for conveying of non-flammable liquids, for use in zone 1 and 2 (gases)
Conforms to the safety regulations of the German Wood Trade Association
According to DIN 26057 Type 1
Conforms to RoHS guideline
REACH Compliant

Weight	10lbs
Dimensions	25x25x12

Warranty Information

All HafcoVac models come with an industry leading Lifetime Warranty. Because there is no motor that will burn out, you will only need to replace the consumable items (Filter, Filter Bags, Foam Silencer and Gaskets).

HafcoVac takes pride in our products and values all of our customers. As such, HafcoVac offers a limited lifetime warranty to all original end-users of our products. Generally, this warranty applies to defects in material and workmanship when the product fails under normal conditions. Damage caused by conditions including, but not limited to the following are expressly excluded: modification to any component or assembly, solvents, corrosives, or harsh environmental conditions. Also excluded are all components considered consumables, such as gaskets, filters or exhaust silencers.

It shall be at the sole discretion of HafcoVac to either repair or replace a defective product or part with an identical or comparable unit. Shipping costs to and from HafcoVac will be the responsibility of the customer after 1 year from the date of purchase.

This warranty expressly excludes all claims of consequential or incidental damages which may arise as a result of product use or failure.

Learn More

OSHA Compliance

Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.

Learn More

Description

PRO-TAPE® 301-AS

: Anti-Static / Pre-PUR^®Polyurethane Hose / ATEX Compliant

Application:

Flexible hose/ducting for gases, abrasive dust, powders, and fibers. Suitable for a wide range of industrial, commercial, and mobile applications, including:

Light Material Handling
Powders: Vacuum & Transfer
Wood Working / CNC
Dust & Fume Extraction: Extraction units, dust collection systems, filter systems, oil mist extraction, extraction arm
Chemical Industry: Chemical vapors, vapor return hoses at loading arms, paint fumes, spray mist extraction
Explosion-Hazard Environments
Agriculture & Animal Care: Barns, animal stalls, and sheds for ventilation
Mobile & Marine Applications: Buses, utility vehicles, caravans, trailers, mobile homes/RVs, boats, ships, yachts—for ventilation and heating
Clean Rooms & High-Tech Production: Semiconductor production machinery, clean room ventilation
Special Components: Bellows, compensators

Construction:

PROTAPE® Tape Hose
Copper Coated Spring steel wire integrated into the hose wall for excellent stability.
Wall made of permanently antistatic, premium ester-polyurethane (Pre-PUR®)
Wall thickness: approximately 0.015 in (0.38 mm) for light weight, flexibility, and durability

Temperature Range:

-40°F to 195°F (-40°C to 90°C), with short-term exposure up to 255°F (124°C)

Properties:

Super-light weight
Highly flexible + compressible 3:1
Abrasion-resistant
Microbe resistant
Good resistance to oil, gasoline, and chemicals
Very good low temperature flexibility
Flame-retardant according to: UL94-HB
Flame-retardant according to: DIN 4102-B1
Permanently antistatic wall according to ISO 8031 electrical and surface resistance < 10⁹ Ω (according to NFPA 652 10⁸-10⁹ Ω)
In accordance with ATEX 2014/34/EU (1999/92/EC) and German TRGS 727: aspiration of combustible dust (zone 22 inside), for conveying of non-flammable liquids, for use in zone 1 and 2 (gases)
Conforms to the safety regulations of the German Wood Trade Association
According to DIN 26057 Type 1
Conforms to RoHS guideline
REACH Compliant

PROTAPE 301-AS (Light Duty)

$99.10

PROTAPE 301-AS (Light Duty)

$99.10
