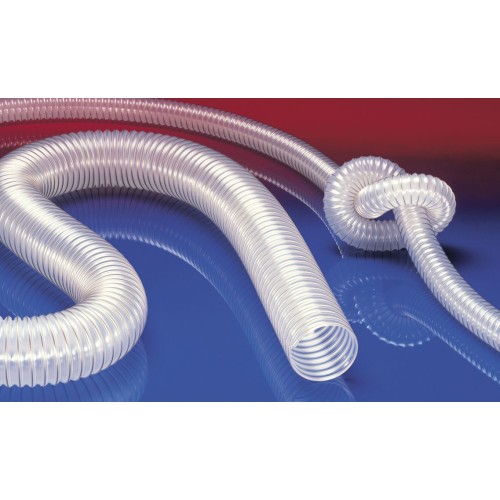

PRO-TAPE® 330-AS
: Anti-Static / Pre-PUR® Polyurethane Hose / ATEX Compliant
Application:
Flexible hose/ducting for gases, abrasive dust, powders, and fibers. Suitable for a wide range of industrial, chemical, and specialized applications, including:
- Material Handling
- Powders: Vacuum & Transfer
- Wood Working / CNC
- Lawn / Leaf
- Dust & Fume Extraction: Extraction units, dust collection systems, filter systems, oil mist extraction, extraction arms
- Electronics & Precision Industry: Printed circuit board (PCB) drilling machines, clean room ventilation, semiconductor production machinery
- Chemical Industry: Chemical vapors, vapor return hoses at loading arms, paint fumes, spray mist extraction
- Explosion-Hazard Environments
- Agriculture & Animal Care: Barns, animal stalls, and sheds for ventilation
- Surface Preparation: Shot/sand blasting recovery, blasting chambers, shipyards, stripping machines, flooring preparation machines, grinding machines
- Heating & Protection: Exterior hose for heating or protective applications
Construction:
- PROTAPE® Tape Hose
- Copper Coated Spring steel wire integrated into the hose wall for excellent stability
- Wall made of permanently antistatic, premium ester-polyurethane (Pre-PUR®)
- Wall thickness: approximately 0.025 in (0.64 mm) for light weight, flexibility, and durability
- Available in "FOOD" (Please email or call for details)
Temperature Range:
- -40°F to 195°F (-40°C to 90°C), with short-term exposure up to 255°F (124°C)
Properties:
- Lightweight and reinforced
- Highly flexible + compressible 3:1
- Abrasion-resistant
- Microbe resistant
- Good resistance to oil, gasoline, and chemicals
- Very good low temperature flexibility
- Conforms to the safety regulations of the German Wood Trade Association
- Flame-retardant according to: UL94-HB
- Flame-retardant according to: DIN 4102-B1
- Permanently antistatic wall according to ISO 8031 electrical and surface resistance < 10⁹ Ω (according to NFPA 652 10⁸-10⁹ Ω)
- In accordance with ATEX 2014/34/EU (1999/92/EC) and German TRGS 727: aspiration of combustible dust (zone 22 inside), for conveying of non-flammable liquids, for use in zone 1 and 2 (gases)
- According to DIN 26057 Type 1
- Conforms to RoHS guideline
- REACH Compliant
| Weight | 10lbs | |||
| Dimensions | 25x25x12 |
